How to download the GNSS log file in SC Edge.

Issue

How to download the GNSS log file in SC Edge.

Answer

Please refer to the explanations below.

Explanation

For trouble shooting or PPK (Post Processing Kinematic) processing with another software, you can download the PPK log file from Smart Construction Edge.

Follow these steps to get the log files:

Start Smart Construction Edge and connect it to your device (Ipad or PC) via Wi-Fi.

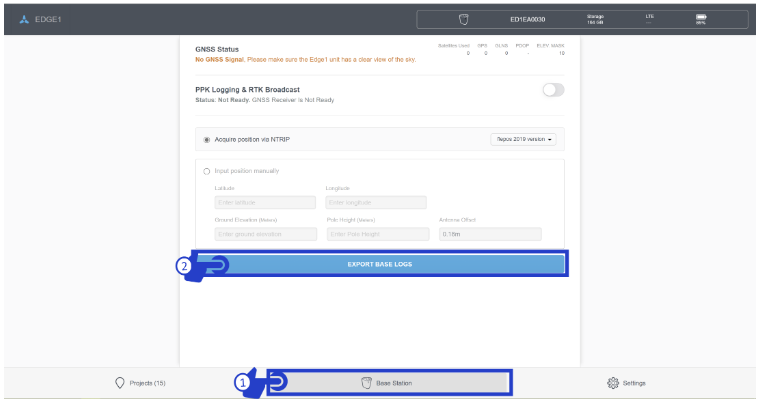

 (1) Go to Base Station and (2) select EXPORT BASE LOGS.

Insert a USB Key or an SD card and (3) select the correct export media.

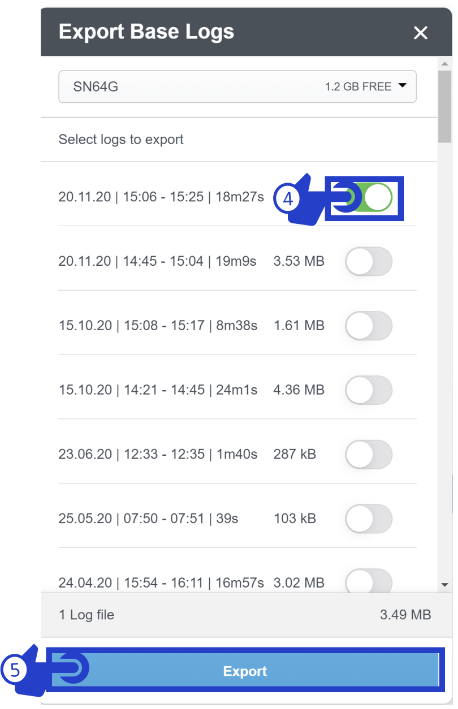

(4) Select the base log you want to export and (5) press Export.

It could take a couple of seconds to load the export logs. Please be patient if you don't see any export log immediately.

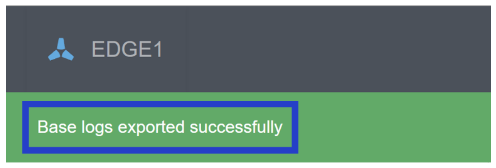

If the export is successful, the following message will appear:



Insert the USB key or SD card in your device, you will find the export under the new folder base_logs.
